Description

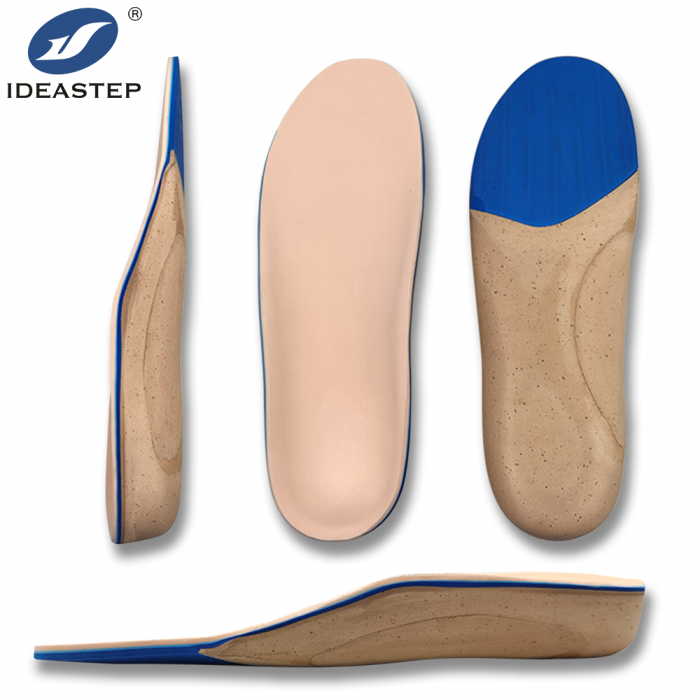

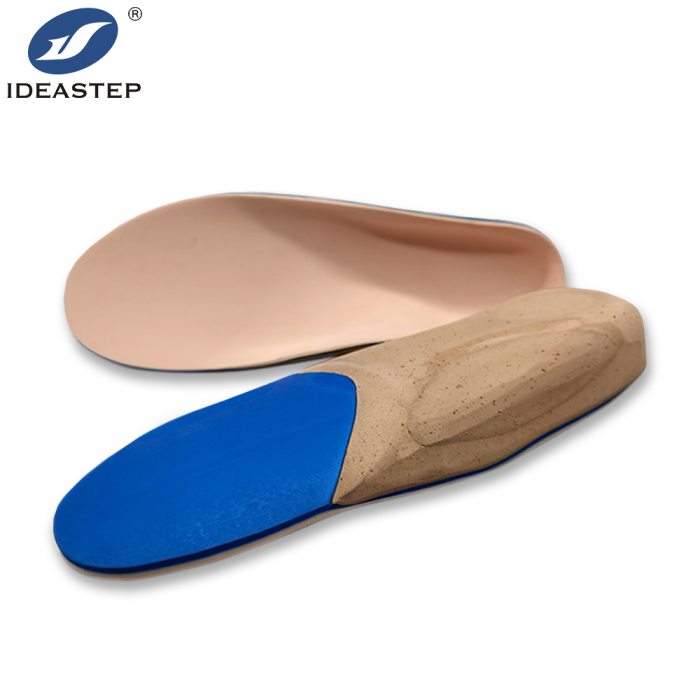

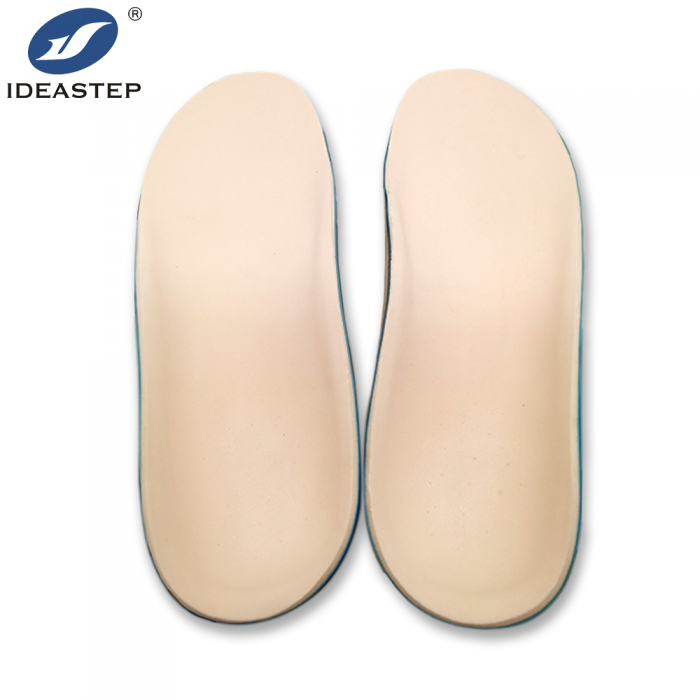

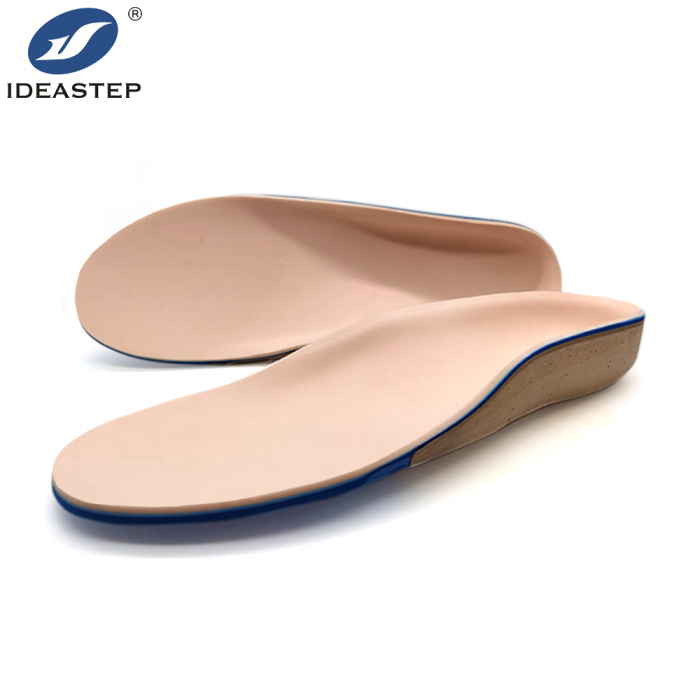

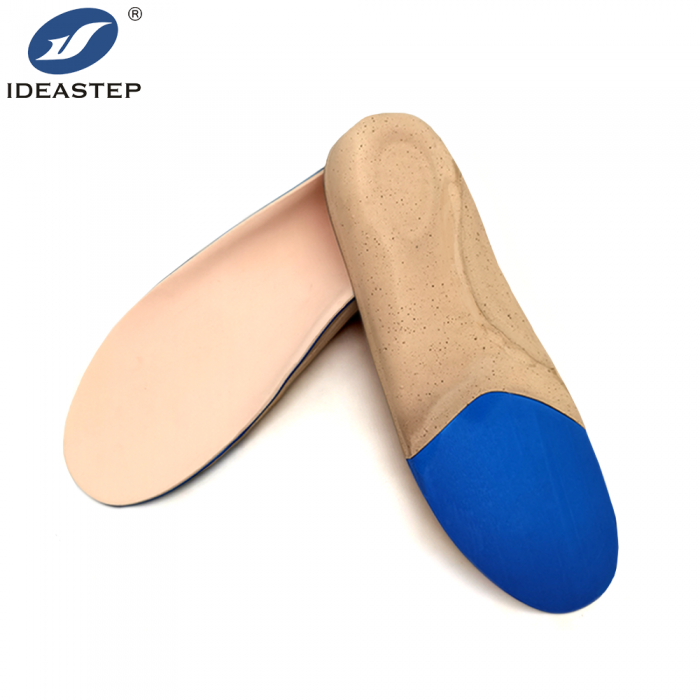

Quick Orthoses Former

“Quick Orthoses Former” custom foot orthoses fabricating blanks are a time saver.

Designed to cut fabrication time in half, Quick Orthoses Form will help Podiatrist,Pedorthist, Orthotist produce custom orthoses indistinguishable from orthoses made by old, traditional methods.

“Quick Orthoses Former” also aids cast modification, making this chore simple, neat, and fast!

“Quick Orthoses Former” created to aid the practitioner with limited time. It is designed to save your busy schedule approximately 40 mins of plaster casting, drying, and molding time.



How to take a foam impression?

1. Have the patient sit close to the edge of the chair with the feet flat on the floor.

Putting on a sock and pulling it up to avoid puckering the foam, place the heel of one foot almost touching the edge of the foam. Hips, knees, and ankles should form a 90-degree angle to the sides.

The toes should not touch the upper edge.

2. Ask the patient to relax. Using your right and left hands, push your feet evenly and thoroughly into the foam by applying downward pressure on your knees and feet. Make sure your toes don’t touch the edge of the box.
3. Repeat steps 1 – 2 with the other foot, working in the opposite direction



How to use the Quick Correction Customizer?

1. Use the Negative foot model made above;
2. Use the length of the midsole (INLAY) of the patient’s shoe to set the position and space of the front of the toe on the foot model. Pour the plaster into the negative cast and wait to dry. Then, the positive cast is cleaned and modified according to the patient’s needs.
3. Heat the “Quick Orthoses Former” in the oven at 250°C for 2-4 minutes
4. Wrap the positive plaster mold with the warm and softened “Quick Orthoses Former,” vacuum, and pressurize until it cools.
5. The orthosis is trimmed and sanded to finish. Add arch filler if necessary.
